JCVision 50-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | JCVision |
| Certification: | CE ROHS |
| Numéro de modèle: | JC-50ILB |
| Documents: | JCVision 50-inch Light Box ....pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | 600 |
| Détails d'emballage: | Boîte en carton |
| Délai de livraison: | 5-8 jours ouvrables |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 50 |
|
Détail Infomation |
|||
| Marque: | JCVISION est une | Modèle: | HD-352C |
|---|---|---|---|
| Nom du produit: | Présentoir à caisson lumineux mural de 50 po | Taille de l'écran: | 50 pouces |
| Type de rétroéclairage: | En ligne | Résolution: | 1920 × 1080 (HD complète) |
| Rapport hauteur/largeur: | 16:9 | Angle de vision: | 89° / 89° / 89° / 89° (L/R/U/D) |
| Couleurs d'affichage: | 16,7 millions | Luminosité: | 300 ± 20 cd/m² |
| Rapport de contraste: | 1200:1 | Temps de réponse: | 6 ms |
| Zone d'affichage active: | 1095,84 × 616,41 mm (H × V) | Jeu de puces: | Hi3751V352F quadricœur, 1,0 GHz |
| GPU: | Mali-450 MP2 | Système opérateur: | Android 9.0 |
| BÉLIER: | 2 Go | Stockage: | 32 Go |
| Décodage vidéo: | Jusqu'à 1080P à 60 Hz | Rotation d'image: | 0° / 90° / 180° / 270° manuel |
| Ports USB: | 2 × USB | HDMI: | 1 × entrée HDMI |
| Ethernet: | Ethernet RJ45 100M | Wi-Fi: | 2,4G (802.11b/g/n) |
| module 4G: | Facultatif | Formats visuels: | MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLASH |
| Formats audio: | WAV, MP3, AAC | Formats d'images: | JPEG, PNG, BMP, GIF |
| Haut-parleurs: | 2 × 8Ω 3W | Entrée d'alimentation: | 100-230 V CA, 50/60 Hz |
| Consommation d'énergie: | ≤ 150 W | Poids net: | 18.5 kg |
| Poids brut: | 210,8 kg | Dimensions du carton: | 1240 × 150 × 770 mm |
| Installation: | Mural (Paysage / Portrait) | Opération: | Utilisation continue 24h/24 et 7j/7 |
| Fonctionnalités spéciales: | Plug and Play, télécommande, écran partagé intelligent, lecture programmée | ||
| Mettre en évidence: | 50-inch indoor digital signage display,E-LED backlit wall mount light box,wide viewing angle retail display |
||
Description de produit

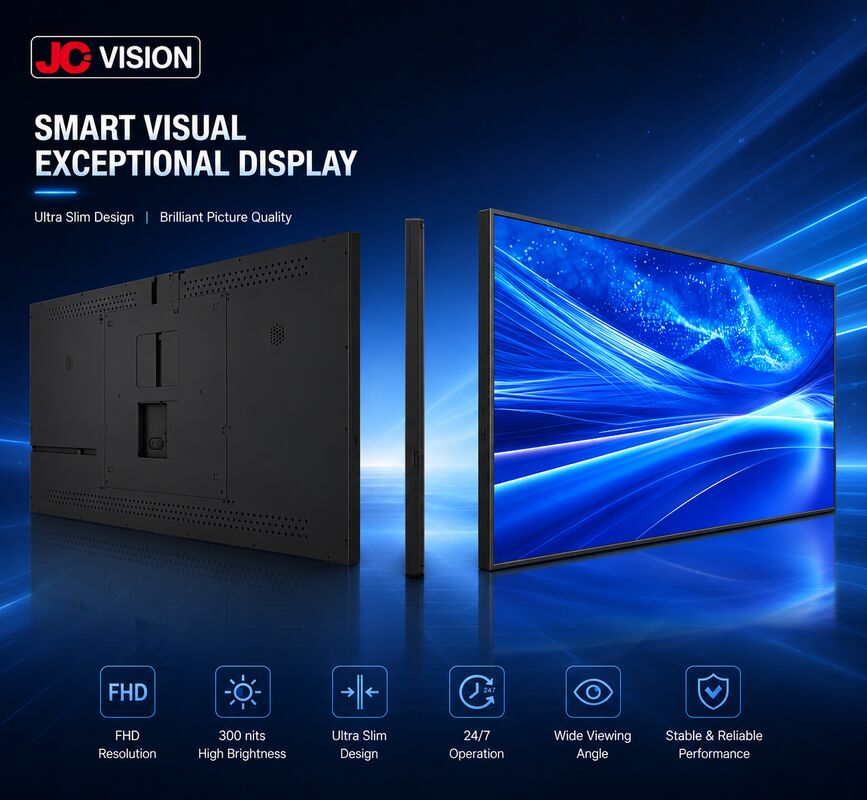

Product Name: JCVision 50-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Description:
The JCVision 50-inch Wall Light Box (Square Edge) is a powerful indoor digital signage display built for high-impact visual communication in retail, hospitality, and corporate environments.
Its 50-inch E-LED backlit panel offers 1920×1080 Full HD resolution, 300 cd/m² brightness, 1200:1 contrast ratio, and 89° wide viewing angles (L/R/U/D), ensuring consistent image quality from every angle. The 6ms response time makes it suitable for dynamic video content.
Under the hood, the Hisilicon Hi3751V352F quad-core processor (1 GHz) and Mali-450 MP2 GPU drive the Android 9.0 operating system with 2GB RAM and 32GB onboard storage. It supports a wide range of video, audio, and image formats (MPEG4, MPEG2, MOV, AVI, JPEG, PNG, etc.) and handles 1080P video decoding.
Connectivity options include 2× USB, 1× HDMI IN, RJ100 Ethernet, and 2.4G Wi-Fi. An optional 4G module is available for remote content management. The unit supports both horizontal and vertical wall mounting, offering flexibility for digital posters, menu boards, and advertising displays.
Key Specifications:
-
Screen Size: 50 inch
-
Resolution: 1920×1080
-
Brightness: 300±20 cd/m²
-
Response Time: 6ms
-
OS: Android 9.0
-
RAM / Storage: 2GB / 32GB
-
Power: ≤150W
-
Dimensions (with wall mount): 1123.80 × 644.00 × 29.20 mm
-
Weight: 18.5 kg (net)
![]()
